Cerex FT5000 Series
Highest sensitivity monitoring for industrial continuous emissions and stack monitoring
The FT-5000 series is a collection of Cerex FTIR analyzers designed for some of the most challenging industry gas monitoring.
- Insitu and Extractive CEM
- Process Analyzers
- Ambient Air Point Analyzers
Engineered specifically for low cost, high performance monitoring of cross process applications. Capable of simultaneous monitoring of more than 350 compounds in Cerex’s FTIR library, the FT-5000 provides continuous emissions monitoring without having to extract the gas samples from the stack.

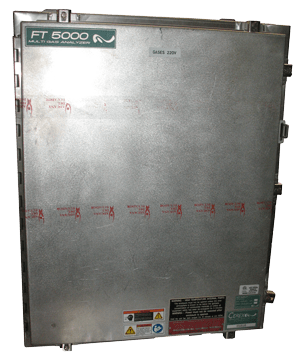

Cerex FT-5000
Cerex manufactures stock and fully custom FTIR analyzers within the FT 5000 product series. Cross stack, Probe based, and UVDOAS FTIR hybrid systems allow this line of products to monitor a wide array of compounds that would typically require multiple devices. Minimal maintenance expenses, coupled with automatic calibration cycles and continuous logging and transmission of data make the FT 5000 series perfect for your monitoring application.
Our FTIR analyzers accurately measure common combustion gases, Carbon Dioxide, Carbon Monoxide, Water Vapor, and can easily be configured to monitor over 400 other compounds. All our devices feature custom alarms, complete integration into your existing data network, and an unparalleled ease of use.
Cerex has the capability to adapt analyzers to extractive, cross-stack, and insitu scenarios, whilst safely providing data in real-time. For extractive applications, heated tube bundles are available; for cross-stack applications, transmitters and reflectors are available; for insitu applications, gas probes are available. The FT-5000 can be customized to fit your specific application needs.
Offering true part-per-billion (ppb) detection limits in an easy to operate package, the Cerex FT-5000’s air-conditioned system can reliably deliver unattended, continuous real time monitoring of ultra low ppb concentrations of individual gas species with absorption features spanning the IR spectrum from 2 to 14 microns. There are no tedious ongoing calibrations, or additional costs for sample handling, wet chemistry, carrier gas, or sorbent filters. Results are immediate, and the raw data containing all the information necessary for gas identification and quantification is always saved.
- Cross stack, Insitu Probe and Parallel Cell Models
- Operational range in ppb, ppm, and higher
- Continuous, real time monitoring of over 400 individual gas species
- 100+ USEPA HAPs
- Acids, VOCs, SVOCs
- Anesthetics / Toxics
- Output options for alarm, data, and process control are available
- Integrated Ethernet / WiFi
- PC or Smartphone Remote Control
- Automatic saved records of data
- Customizable audible, visual and email alerts
The Cerex FT 5000 analyzer is based on the widely acclaimed full spectrum Bomem MB3000 interferometer.
The Cerex FT5000 is a portable Continuous Emissions Monitor for cross stack applications. The system is based on proven FTIR and DOAS technology. The FT5000 analyzer provides real-time multi-gas qualification and quantification of gases commonly found in stack emissions. The FT5000 can also serve as a reliable alarm and easily integrates into your existing alarm system.
The Cerex FT5000 analyzer is based on the widely acclaimed full spectrum Bomem MB3000 interferometer. The MB3000 has compliance with CE and TUV.

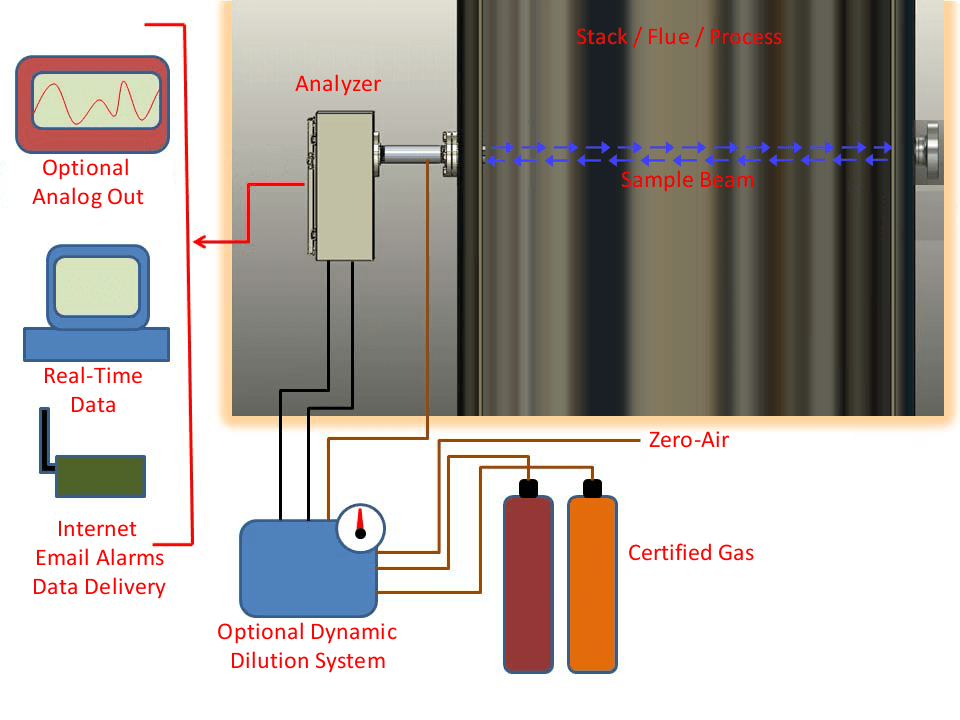

FT5000CS
Continuous Emissions Monitor for cross stack applications
Weight 150 lbs (68kg)
Measurements 24.5″ x 18.5″ x 10″ (62cm x 47cm x 25.4cm)
Enclosure 4X – IP54, thermoelectrically cooled
Power 4A/2A @ 110/220 VAC
Operating Temperature -20°F – 104°F (-29°C – 40°C)
Optical Path Length 5m – 1000m
Options
- Integrated Controller Adds integrated data acquisition and remote management with wired or wireless ethernet.
- Analog Outputs Adds analog voltage or 4-20mA output channels. Requires integrated controller or external PC.
- Serial Outputs Adds RS-232, RS-422, or RS-485 output over a wired or wireless platform. Requires integrated controller or external PC.
- Alarm Outputs Adds switched outputs based on software programmable alarm levels. Requires integrated controller or external PC.
- Weather Monitoring Adds wind speed and direction logging.
- Advanced Weather Monitoring Adds wind speed, wind direction, 3D wind mapping, and air temperature logging.
Installation
- Packaged in an type 4X – IP54, thermoelectrically cooled, enclosure
- Suitable for corrosive environment system deployment
- Environmentally sealed
Maintenance
- Recommend quarterly inspection and possible replacement of the air intake filters if operated continuously
- A maintenance free, thermoelectrically (TE) cooled, detector is available for some applications
- Stirling cooler (detector cryocooler) guaranteed for 2 years before refurbishment is required
- IR source life time is approximately 2 years
- Fans are rated to 70,000 hours at 40°C

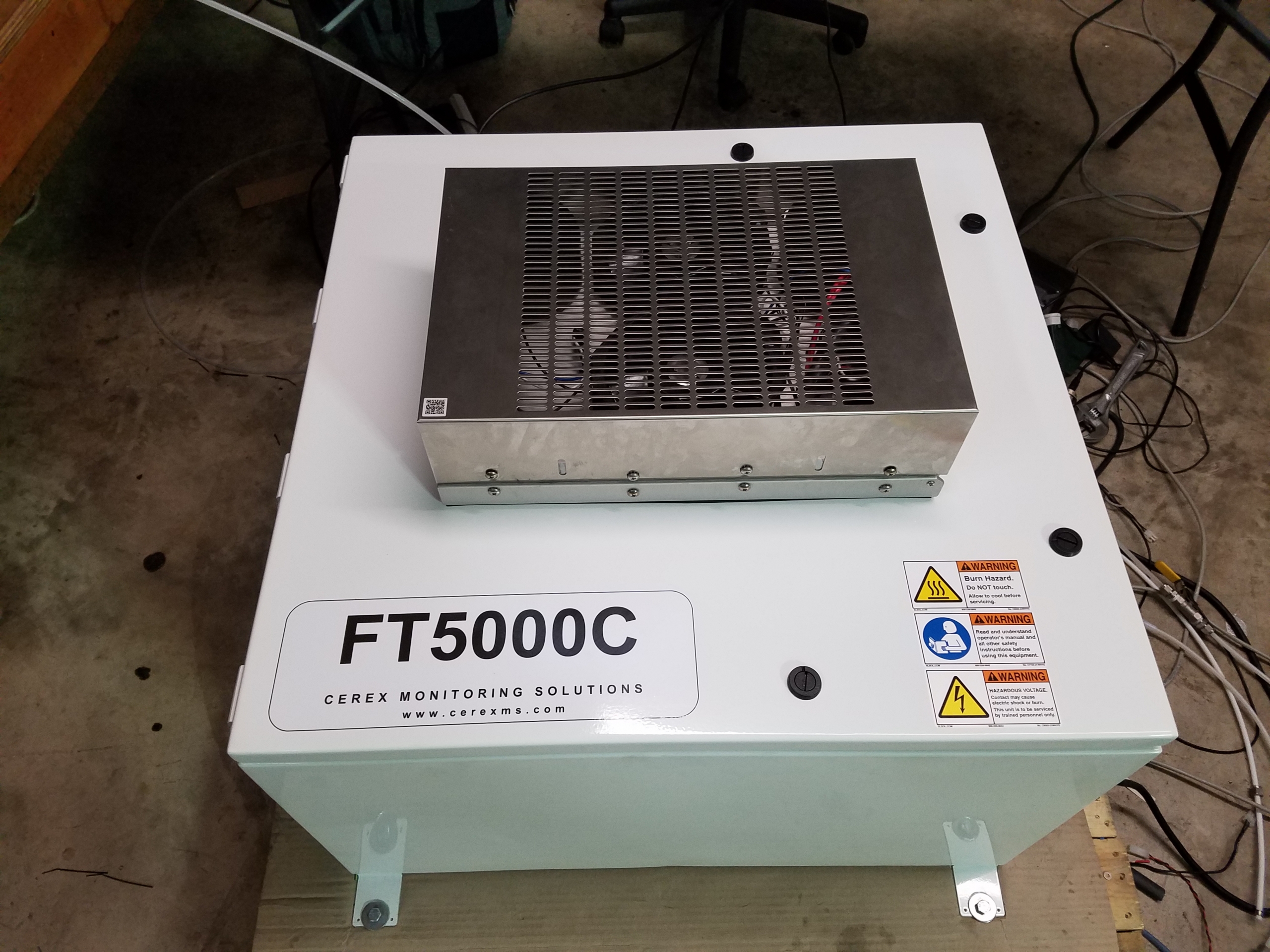

FT5000C / FT5000CRM
Extractive Stack and Ambient Point Analyzers
The Cerex FT5000C and FT5000CRM are multi-gas FTIR analyzers suitable for continuous emissions monitoring, process monitoring, RATA, Quad J and Quad Z compliance monitoring, and ambient air monitoring applications.
The FT5000C features a wall mount NEMA enclosure and thermo-electric air conditioning for outdoor or indoor operation. Optional hazardous location hardware allows operation in Class 1 Division 2 Groups A-D areas.
The FT5000CRM features a rack mount, air cooled enclosure suitable for installation in temperature controlled cabinets, mobile laboratories, laboratory benchtops and intermittent portable stack testing.
All models are available with heated sample cells and heated sample tube controllers for Hot and Wet operation.
Weight 150 lbs (68kg)
Measurements 24.5″ x 18.5″ x 10″ (62cm x 47cm x 25.4cm)
Enclosure 4X – IP54, thermoelectrically cooled
Power 4A/2A @ 110/220 VAC
Operating Temperature -20°F – 104°F (-29°C – 40°C)
Optical Path Length 5m – 1000m
Installation
- Packaged in an type 4X – IP54, thermoelectrically cooled, enclosure
- Suitable for corrosive environment system deployment
- Environmentally sealed
Maintenance
- Recommend quarterly inspection and possible replacement of the air intake filters if operated continuously
- A maintenance free, thermoelectrically (TE) cooled, detector is available for some applications
- Stirling cooler (detector cryocooler) guaranteed for 2 years before refurbishment is required
- IR source life time is approximately 2 years
- Fans are rated to 70,000 hours at 40°C

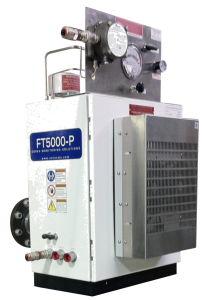

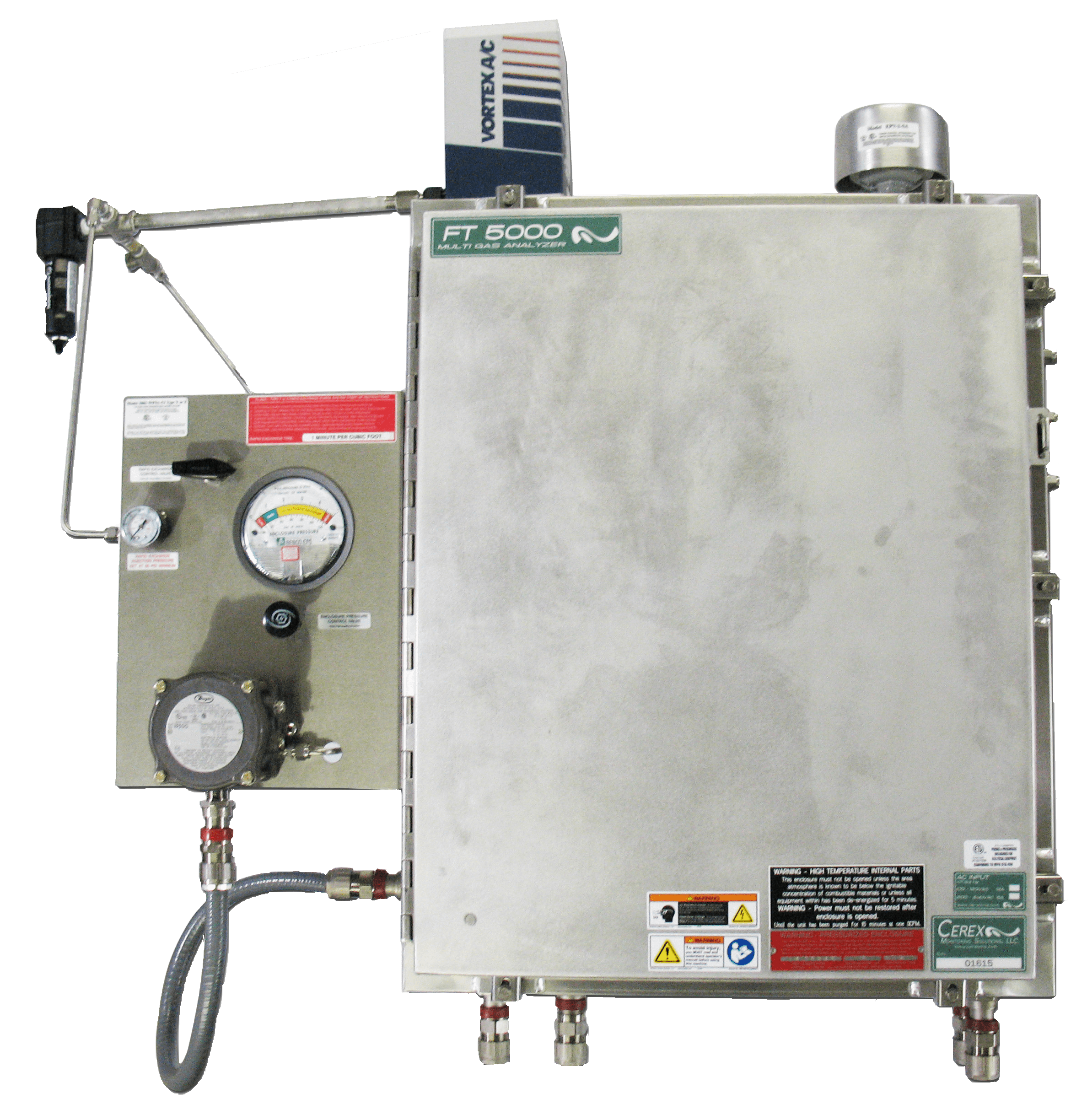

FT5000P
Insitu Stack and Process FTIR Analyzer
Weight 150 lbs (68kg)
Measurements 24.5″ x 18.5″ x 10″ (62cm x 47cm x 25.4cm)
Enclosure 4X – IP54, thermoelectrically cooled
Power 4A/2A @ 110/220 VAC
Operating Temperature -20°F – 104°F (-29°C – 40°C)
Optical Path Length 5m – 1000m
Installation
- Packaged in an type 4X – IP54, thermoelectrically cooled, enclosure
- Suitable for corrosive environment system deployment
- Environmentally sealed
Maintenance
- Recommend quarterly inspection and possible replacement of the air intake filters if operated continuously
- A maintenance free, thermoelectrically (TE) cooled, detector is available for some applications
- Stirling cooler (detector cryocooler) guaranteed for 2 years before refurbishment is required
- IR source life time is approximately 2 years
- Fans are rated to 70,000 hours at 40°C
How it Works
Open Path FTIR Technology
Fourier transform infrared spectroscopy (FTIR) is the preferred technique used to obtain an infrared spectrum of absorption or emission of a solid, liquid, and gas.

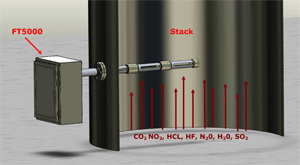

The FT-5000 operates by sending a beam of infrared light through a 20 meter sealed sample cell within the instrument. The IR beam is directed by a series of optics to an ultra-sensitive cryo-cooled MCT detector where minute changes in IR absorption are sensed due to trace concentrations of individual gases. A classical least squares regression analysis compares the measured absorption spectrum to calibrated reference absorption spectra files. Beer’s law is then used to determine gas concentrations (Beer-Lambert Law).
The result of coupling our proven detection system with a 20 meter internal optical sample path and CMS real time analytic software is an industry leading FTIR multi-gas analyzer.
(Above) Process of open-path monitoring (depicted with a Cerex UV Sentry). Similarly, the AirSentry FTIR mounts to a precision pan and tilt head which may be used with a tripod for rapid deployment, or with a fixed mount for permanent installations. The retro-reflector array is housed in a NEMA enclosure and may be tripod or fixed mounted to a mast, pole or superstructure. Monitoring path lengths are typically configured to meet minimum detection limits required for the project. Paths to 1 km are possible. The IR beam is eye-safe and the analyzer may be located directly in the breathing zone. Gases present in the beam path are identified and quantified in near real time. Credit: STI
The most cost effective perimeter & fenceline monitoring solution
Offering real time quantification of multiple compounds, the Cerex AirSentry FTIR provides a cost effective multi-component perimeter fugitive emissions or LDAR monitoring solution.
Low maintenance and low detection limits
Monitoring as few as two gases with the AirSentry FTIR often results in lower initial and lower ongoing operational costs than utilization of competing gas detection technologies, while simultaneously delivering reliable U.S.E.P.A. TO-16 regulatory compliant air quality monitoring.
Individual species of prolific hazardous air pollutants
The AirSentry FTIR is offered fully configured to meet the requirements of your air quality monitoring application. Target gases are selected from Cerex’s library of 385 compounds.
Common Detectable Gases
Extensive Library with Options for Customization
Cerex has over 385 compounds available for detection with the AirSentry. If your compound is not one of the compounds already available within our database, the Cerex AirSentry FTIR may import gas spectra from the numerous FTIR databases on the web (NIST, EPA, PNNL, etc.)
If you have a compound that is not available in a public database, we may be able to work with you to develop a custom spectrum. Detection limits are a function of the IR detector, installed path length, and site conditions. The detection limits shown have been empirically determined from bump tests of fielded instruments at full path-length.
It is efficient as an alarm and easily integrated into your existing alarm system.
*NOTE: If desired target gases are available within the UV spectrum, we recommend the Cerex UV SENTRY for better pricing options. The UV Sentry is an open-path analyzer that uses UV-DOAS (Ultra Violet Differential Optical Absorption Spectroscopy). Find more information about UV-DOAS and FTIR techniques here.
FT5000 Common Target Gases
| Acetaldehyde (C2H4O) |
| Acetic Acid (C2H4O2) |
| Acetone (CH3COCH3) |
| Acetylene (C2H2) |
| Acrolein (C3H4O) |
| Benzaldehyde (C7H6O) |
| Butane (C4H10) |
| n-Butyl (C6H12O2) |
| Carbon Dioxide (CO2) |
| Carbon Monoxide (CO) |
| Chlorine Dioxide (ClO2) |
| Ethane (C2H6) |
| Ethanol (C2H6O) |
| Formaldehyde (CH2O) |
| Formic Acid (CH2O2) |
| n-Hexane (C6H14) |
| Hydrogen Bromide (HBr) |
| Hydrogen Chloride (HCl) |
| Hydrogen Fluoride (HF) |
| Methane (CH4) |
| Nitric Oxide (NO) |
| Nitrogen Dioxide (N2O) |
| Phenol (C6H5OH) |
| Phosgene (CCl2O) |
| Water Vapor (H2O) |
Software
Results You Can Rely On
Cerex recognizes that detailed gas monitoring results need to be reliable and available quickly to various stakeholders. For this reason, Cerex engineers developed software to accurately detect and display gases within the air in real time from any location.
On an Air Sentry FTIR, a user can see results remotely on a phone, tablet, or computer anywhere in the world via a virtual connection. GPS and cellular configurations make this possible in remote environments.
All data is automatically saved in an easy to access .csv file; this feature helps our clients in various ways - from daily use to crucial events such as evidence in court. Early detection translates into quicker response times, reduced environmental impact, decreased plant downtime, and reduced exposure to site personnel and the community.
Learn more about the benefits of our proprietary analysis software here.
Real time spectral subtraction and synthetic background implementation allow the Air Sentry to clearly display accurate concentrations of target gases over 1000 meters without interference from other gas species
Applications
Hundreds of successful installations
In 2019 alone, 190 Air Sentry units were provided to various clients
Cerex has been manufacturing the AirSentry FTIR since 1994 and continues to provide support for these fielded instruments. With hundreds of detectable compounds, the AirSentry FTIR is the monitoring solution for petrochemical industries, semiconductor plants, agriculture, landfill, and site surveys of historically polluted areas.
The AirSentry FTIR, with its hundreds of detectable compounds, is suitable choice for compliance with Rule 1180 and refinery fenceline air monitoring. A flexible analyzer platform, the AirSentry may be rapidly converted from open path mode to point analyzer mode with the inclusion of an optional sample cell. In open path mode the AirSentry FTIR offers full USEPA TO-16 compliant monitoring. In point analyzer mode the AirSentry FTIR meets a variety of method compliance standards.
All Applications
Mobile Laboratory Monitoring
Indoor air quality monitoring
Insitu Continuous Emissions Monitoring (CEMs)
Insitu Process Monitoring
Insitu Tailgas
Insitu Ammonia Slip
Insitu DeNOx/SCR and DeSOx/FGD
Zone Monitoring
All Applications
USEPA Method 318: Extractive FTIR Method for Measurement of Emissions from Mineral Wool and Wool Fiberglass Industries
USEPA Performance Specification 15 for Extractive FTIR CEMS in Stationary Sources
USEPA Method 320: Vapor Phase Organic and Inorganic Emissions by FTIR
USEPA Method 321: Determination of HCl for Portland Cement Industries
NIOSH Method 3800 : Organic and Inorganic Gases by Extractive FTIR Spectrometry
ASTM Method D6348-03: Determination of Gaseous Compounds by Extractive Direct Interface Fourier Transform Infrared Spectroscopy
Air Sentry Specifications
| General Parameters | |
| Part Number | Shepherd FTIR |
| Analyzer Type | Multi-gas portable point analyzer |
| Technology | Fourier Transform InfraRed (FTIR) Differential Optical Absorption Spectroscopy (DOAS) |
| Performance | Available with standard HAP (385 compound & 62 Compound), Criteria, Hospital and custom gas detection libraries. |
| Data Output Rate | User selectable from 5 seconds and up Typical output rates are 30s, 60s, 120s, or 300s Time weighted average available for user defined periods (8 hour, 12 hour, 24 hour) |
| Measurement Principle | Beer-Lambert Law |
| Measurement Technique | Classical Least Squares (CLS) regression analysis; optional Partial Least Squares (PLS) |
| Operating Temperature | 0°C to 35°C (Optional Air Cooled Model)
|
| Storage Temperature | -40C° to 60C° |
| Power Supply | 100 to 130V or 200 to 240VAC/50-60Hz |
| Power Consumption | 240W MAX |
| Instrument Cooling | Air Cooled |
| Installation | Fixed mount or tripod mount (open path analyzer mode) Bench-top (point analyzer mode) |
| Dimensions | 42.1" x 21.9" x 23.3" (107cm x 55.7cm x 59.1cm) |
| Weight | 85 lbs (38.6Kg) |
| Measuring Parameters | |
| Concentration measurement accuracy | ±5 % Reading TYP |
| Concentration measurement precision | ±5 % Reading TYP |
| Interferent Mitigation | Real time spectral subtraction and residual subtraction, multi-peak analysis. |
| Zero point calibration | Simultaneous dual mode natural zero and/or synthetic zero on gas by gas basis. Automated compound specific background selection. |
| Software | |
| Real Time Operating Software | Cerex Continuous Monitoring Software (CMS) |
| Operating System | Windows 10 Pro |
| Post Collection Analysis Software | Cerex Data Processor |
| Operating System | Windows 7, 8, 10 |
| Spectrometer | |
| Apodized Resolution | User selectable: 0.5 cm-1, 1 cm-1, 2 cm-1, 4 cm-1, 8 cm-1, 16 cm-1, 32 cm-1 |
| Scan frequency | 6 scans/s @ 32 cm-1 |
| Detector | Stirling Cooled MCT (standard) TE Cooled MCT (application dependent) |
| Detector temperature | 77 K (Stirling cooled MCT) |
| Source | SiC, 1550K |
| Beamsplitter | ZnSe (standard) |
| Window material | ZnSe (standard) |
| Wavenumber range | 600-4200 cm-1 |
| Temperature stability | < 1% per C⁰ |
| Frequency repeatability | < 0.001 cm-1 @ 1918cm-1 |
| Frequency accuracy | < 0.06 cm-1 @ 1918cm-1 |
| Short term stability | < 0.09% |
| Maximum signal to noise ratio | 50,000: 1 (RMS, 60s, 4 cm-1, at peak response) |
| Signal sampling | 24-bit ADC |
| Quality Assurance Hardware | |
| Type | Internal linear multi-pass cell permanently mounted in beam path. External window removable. |
| Calibration gas inlet | Quick Connect QA Adapter: 1/4" Swagelok |
| Calibration gas outlet | Screw-in Exhaust Adapter: 3/8" Swagelok |
| Path Length | 19.2 m |
| Volume | 3.4 L |
| Maximum sample pressure | 1 PSI |
| Pressure and temperature measurement | Integrated pressure and temperature sensor |
| Integration | |
| HMI | Touchscreen (standard model) |
| Digital Interface | RJ45 Ethernet LAN Port for local or internet based remote data and access using MODBUS TCP, VNC, and remote desktop. Spectral data may be stored locally, on a NAS, or disabled. Industrial external wireless option available. Type A USB for data retrieval and peripheral accessories. |
| Power Connection | Environmentally sealed circular Amphenol bayonet connector. |
| Integrated Computer | Embedded industrial PC |
| Options | |
| Integrated Wind Mapping | Three dimesnional ultrasonic anemometer with temperature measurement. Data integrated into CMS data tables and available via MODBUS. |
| Integrated Data Acqusition | External ports with data integration for particulate or ancillary co-located analyzers (TDLAS laser, electrochemical, etc.). |
| Data Output | MODBUS over RS-232, RS-485. MODBUS over TCP-IP is standard. |
| Analog Output | 8 channel configurable 0-24mA (4-20mA with extended range) |
Downloads
Air Sentry Standard Model Brochure (PDF 1.4MB)
(Coming Soon) Technical Sheet - Specifications (PDF)
US EPA, BAAQMD, and SCAQMD Refinery Compliance Solutions (PDF 0.8MB)
| Type | Compound | MDL PPB | ||||
| Criteria | Sulfur Dioxide | 300 | ||||
| Volatile Organic Compounds | Acrolein | 15 | ||||
| 1,3 Butadiene | 4 | |||||
| Styrene | 8 | |||||
| BTEX | Benzene | 30 | ||||
| Toluene | 100 | |||||
| Ethylbenzene | 25 | |||||
| m-Xylene | 100 | |||||
| o-Xylene | 300 | |||||
| p-Xylene | 300 | |||||
| Alkanes | Pentane C5 | 4 | ||||
| n-Hexane C6 | 3 | |||||
| TVOC | Methane C1 | 3 | ||||
| NMHC | Ethane C2 | 8 | ||||
| NMNEHC | Butane C4 | 4 | ||||
| Propane C3 | 4 | |||||
| Formaldehyde | 7 | |||||
| Propene (propylene) | 6 | |||||
| Ethene (ethylene) | 4 | |||||
| Acetylene | 4 | |||||
| Acetaldehyde | 5 | |||||
| Methanoic Acid | 5 | |||||
| Methanol | 4 | |||||
| Other | Hydrogen Cyanide | 10 | ||||
| Hydrogen Fluoride | 4 | |||||
| Ammonia | 3 | |||||
| Hydrogen Sulfide | 450 | |||||
Overview
Cerex’s FT-5000 is an FTIR continuous multi-gas analyzer, engineered specifically for low cost, high performance monitoring of cross process applications. Capable of simultaneous monitoring of more than 350 compounds in Cerex's FTIR library, the FT-5000 provides continuous emissions monitoring without having to extract the gas samples from the stack.
Cerex has the capability to adapt analyzers to extractive, cross-stack, and insitu scenarios, whilst safely providing data in real-time. For extractive applications, heated tube bundles are available; for cross-stack applications, transmitters and reflectors are available; for insitu applications, gas probes are available. The FT-5000 can be customized to fit your specific application needs.
Offering true part-per-billion (ppb) detection limits in an easy to operate package, the Cerex FT-5000's air-conditioned system can reliably deliver unattended, continuous real time monitoring of ultra low ppb concentrations of individual gas species with absorption features spanning the IR spectrum from 2 to 14 microns. There are no tedious ongoing calibrations, or additional costs for sample handling, wet chemistry, carrier gas, or sorbent filters. Results are immediate, and the raw data containing all the information necessary for gas identification and quantification is always saved.
How it Works - FTIR
Fourier transform infrared spectroscopy (FTIR) is the preferred technique used to obtain an infrared spectrum of absorption or emission of a solid, liquid, and gas.
The FT-5000 operates by sending a beam of infrared light through a 20 meter sealed sample cell within the instrument. The IR beam is directed by a series of optics to an ultra-sensitive cryo-cooled MCT detector where minute changes in IR absorption are sensed due to trace concentrations of individual gases. A classical least squares regression analysis compares the measured absorption spectrum to calibrated reference absorption spectra files. Beer’s law is then used to determine gas concentrations (Beer-Lambert Law).
The result of coupling our proven detection system with a 20 meter internal optical sample path and CMS real time analytic software is an industry leading FTIR multi-gas analyzer.
Cerex's FT-5000 analyzers feature:
- Cross stack, Insitu Probe and Parallel Cell Models
- Operational range in ppb, ppm, and higher
- Continuous, real time monitoring of over 400 individual gas species
- 100+ USEPA HAPs
- Acids, VOCs, SVOCs
- Anesthetics / Toxics
- Output options for alarm, data, and process control are available
- Integrated Ethernet / WiFi
- PC or Smartphone Remote Control
- Automatic saved records of data
- Customizable audible, visual and email alerts
The Cerex FT 5000 analyzer is based on the widely acclaimed full spectrum Bomem MB3000 interferometer.
All FT-5000 analyzers come standard in a ...
FT-5000 Model
- Packaged in an type 4X - IP54, thermoelectrically cooled, enclosure
- Environmentally sealed
- Operating temperature range of -40°F to 131°F (-40°C to 55°C).
- Suitable for corrosive environment system deployment
We recommend...
Maintenance
- Recommend quarterly inspection and possible replacement of the air intake filters if operated continuously
- Fans are rated to 70,000 hours at 40°C
- IR source life time is approximately 2 years
- Stirling cooler (detector cryocooler) guaranteed for 2 years before refurbishment is required
- A maintenance free, thermoelectrically (TE) cooled, detector is available for some applications
Extensive Library with Options for Customization
Cerex has over 385 compounds available for detection with the FT-5000. If your compound is not one of the compounds already available within our database, the FT-5000 may import gas spectra from the numerous FTIR databases on the web (NIST, EPA, PNNL, etc.)
If you have a compound that is not available in a public database, we may be able to work with you to develop a custom spectrum. Detection limits are a function of the IR detector, installed path length, and site conditions. The detection limits shown have been empirically determined from bump tests of fielded instruments at full path-length.
| Type | Compound | MDL PPB | ||||
| Criteria | Sulfur Dioxide | 300 | ||||
| Volatile Organic Compounds | Acrolein | 15 | ||||
| 1,3 Butadiene | 4 | |||||
| Styrene | 8 | |||||
| BTEX | Benzene | 30 | ||||
| Toluene | 100 | |||||
| Ethylbenzene | 25 | |||||
| m-Xylene | 100 | |||||
| o-Xylene | 300 | |||||
| p-Xylene | 300 | |||||
| Alkanes | Pentane C5 | 4 | ||||
| n-Hexane C6 | 3 | |||||
| TVOC | Methane C1 | 3 | ||||
| NMHC | Ethane C2 | 8 | ||||
| NMNEHC | Butane C4 | 4 | ||||
| Propane C3 | 4 | |||||
| Formaldehyde | 7 | |||||
| Propene (propylene) | 6 | |||||
| Ethene (ethylene) | 4 | |||||
| Acetylene | 4 | |||||
| Acetaldehyde | 5 | |||||
| Methanoic Acid | 5 | |||||
| Methanol | 4 | |||||
| Other | Hydrogen Cyanide | 10 | ||||
| Hydrogen Fluoride | 4 | |||||
| Ammonia | 3 | |||||
| Hydrogen Sulfide | 450 | |||||
FT-5000 Specifications
| General Parameters | |
| Part Number | Shepherd FTIR |
| Analyzer Type | Multi-gas portable point analyzer |
| Technology | Fourier Transform InfraRed (FTIR) Differential Optical Absorption Spectroscopy (DOAS) |
| Performance | Available with standard HAP (385 compound & 62 Compound), Criteria, Hospital and custom gas detection libraries. |
| Data Output Rate | User selectable from 5 seconds and up Typical output rates are 30s, 60s, 120s, or 300s Time weighted average available for user defined periods (8 hour, 12 hour, 24 hour) |
| Measurement Principle | Beer-Lambert Law |
| Measurement Technique | Classical Least Squares (CLS) regression analysis; optional Partial Least Squares (PLS) |
| Operating Temperature | 0°C to 35°C (Optional Air Cooled Model)
|
| Storage Temperature | -40C° to 60C° |
| Power Supply | 100 to 130V or 200 to 240VAC/50-60Hz |
| Power Consumption | 240W MAX |
| Instrument Cooling | Air Cooled |
| Installation | Fixed mount or tripod mount (open path analyzer mode) Bench-top (point analyzer mode) |
| Dimensions | 42.1" x 21.9" x 23.3" (107cm x 55.7cm x 59.1cm) |
| Weight | 85 lbs (38.6Kg) |
| Measuring Parameters | |
| Concentration measurement accuracy | ±5 % Reading TYP |
| Concentration measurement precision | ±5 % Reading TYP |
| Interferent Mitigation | Real time spectral subtraction and residual subtraction, multi-peak analysis. |
| Zero point calibration | Simultaneous dual mode natural zero and/or synthetic zero on gas by gas basis. Automated compound specific background selection. |
| Software | |
| Real Time Operating Software | Cerex Continuous Monitoring Software (CMS) |
| Operating System | Windows 10 Pro |
| Post Collection Analysis Software | Cerex Data Processor |
| Operating System | Windows 7, 8, 10 |
| Spectrometer | |
| Apodized Resolution | User selectable: 0.5 cm-1, 1 cm-1, 2 cm-1, 4 cm-1, 8 cm-1, 16 cm-1, 32 cm-1 |
| Scan frequency | 6 scans/s @ 32 cm-1 |
| Detector | Stirling Cooled MCT (standard) TE Cooled MCT (application dependent) |
| Detector temperature | 77 K (Stirling cooled MCT) |
| Source | SiC, 1550K |
| Beamsplitter | ZnSe (standard) |
| Window material | ZnSe (standard) |
| Wavenumber range | 600-4200 cm-1 |
| Temperature stability | < 1% per C⁰ |
| Frequency repeatability | < 0.001 cm-1 @ 1918cm-1 |
| Frequency accuracy | < 0.06 cm-1 @ 1918cm-1 |
| Short term stability | < 0.09% |
| Maximum signal to noise ratio | 50,000: 1 (RMS, 60s, 4 cm-1, at peak response) |
| Signal sampling | 24-bit ADC |
| Quality Assurance Hardware | |
| Type | Internal linear multi-pass cell permanently mounted in beam path. External window removable. |
| Calibration gas inlet | Quick Connect QA Adapter: 1/4" Swagelok |
| Calibration gas outlet | Screw-in Exhaust Adapter: 3/8" Swagelok |
| Path Length | 19.2 m |
| Volume | 3.4 L |
| Maximum sample pressure | 1 PSI |
| Pressure and temperature measurement | Integrated pressure and temperature sensor |
| Integration | |
| HMI | Touchscreen (standard model) |
| Digital Interface | RJ45 Ethernet LAN Port for local or internet based remote data and access using MODBUS TCP, VNC, and remote desktop. Spectral data may be stored locally, on a NAS, or disabled. Industrial external wireless option available. Type A USB for data retrieval and peripheral accessories. |
| Power Connection | Environmentally sealed circular Amphenol bayonet connector. |
| Integrated Computer | Embedded industrial PC |
| Options | |
| Integrated Wind Mapping | Three dimesnional ultrasonic anemometer with temperature measurement. Data integrated into CMS data tables and available via MODBUS. |
| Integrated Data Acqusition | External ports with data integration for particulate or ancillary co-located analyzers (TDLAS laser, electrochemical, etc.). |
| Data Output | MODBUS over RS-232, RS-485. MODBUS over TCP-IP is standard. |
| Analog Output | 8 channel configurable 0-24mA (4-20mA with extended range) |
FT 5000 CEM Cross Stack Analyzer
[one_half] The Cerex FT5000 is a portable Continuous Emissions Monitor for cross stack applications. The system is based on proven FTIR and DOAS technology. The FT5000 analyzer provides real-time multi-gas qualification and quantification of gases commonly found in stack emissions. The FT5000 can also serve as a reliable alarm and easily integrates into your existing alarm system.
The Cerex FT5000 analyzer is based on the widely acclaimed full spectrum Bomem MB3000 interferometer. The MB3000 has compliance with CE and TUV.[/one_half][one_half_last]
[/one_half_last]
[button color="darkgreen" size="large" caption="PDF (0.4 MB)" link="http://www.cerexms.com/wp-content/uploads/2013/06/Brochure_Cerex_FT5000.pdf" align="center"]FT5000 Product Brochure[/button]
[button color="darkgreen" size="large" caption="for more information" link="http://cerexms.com/contact/" align="center"]Email Cerex[/button]
[clearline]
[toggle title="Available Compounds"]
FT5000+ Continuous Emissions Monitor
Dual channel FTIR / UVDOAS Cross Stack Multi-gas CEM Analyzer
[one_half]
The Cerex FT5000+ is a fixed Continuous Emissions Monitor for cross stack or process applications. The system is based on proven FTIR and UVDOAS technology. The FT 5000 Plus analyzer provides real-time multi-gas qualification and quantification of gases commonly found in stack emissions. The FT5000+ features simultaneous dual channel UVDOAS and FTIR operation, allowing for monitoring of gases typically impossible with a single system.
It comes standard with an internal controller for data logging and integration into your existing data acqusition netwrok. A number of output options for alarm, data, and process control are available for direct integration into your exisiting emissions control system.
[/one_half][one_half_last] [/one_half_last] [button color="darkgreen" size="large" caption="PDF (2.9 MB)" link="http://www.cerexms.com/wp-content/uploads/2013/06/Brochure_Cerex_FT5000+.pdf" align="center"]FT5000+ Product Brochure[/button] [button color="darkgreen" size="large" caption="for more information" link="http://cerexms.com/contact/" align="center"]Email Cerex[/button] [clearline] [toggle title="Available Compounds"]
Compounds
Acetaldehyde (C2H4O)
Acetic Acid (C2H4O2)
Acetone (CH3COCH3)
Acetylene (C2H2)
Acrolein (C3H4O)
Ammonia (NH3)
Benzaldehyde (C7H6O)
Benzene (C6H6)
Butane (C4H10)
n-Butyl (C6H12O2)
Carbon Dioxide (CO2)
Carbon Disulfide (CS2)
Carbon Monoxide (CO)
Chlorine (Cl2)
Chlorine Dioxide (ClO2)
Ethane (C2H6)
Ethanol (C2H6O)
Ethyl Benzene (C8H10O)
Formaldehyde (CH2O)
Formic Acid (CH2O2)
n-Hexane (C6H14)
Hydrogen Bromide (HBr)
Hydrogen Chloride (HCl)
Hydrogen Fluoride (HF)
Hydrogen Sulfide (HS)
Isoprene (C5H8)
Mercury (Hg)
Methane (CH4)
Napthalene (C10H8)
Nitric Oxide (NO)
Nitrogen Dioxide (N2O)
Nitrous Acid (HNO2)
Oxygen (O2)
Phenol (C6H5OH)
Phosgene (CCl2O)
Styrene (C8H8)
Sulfur Dioxide (SO8H8)
Toluene (C6H5CH3)
Trimethylbenzene (C9H12)
Water Vapor (H2O)
O-Xylene, M-Xylene, P-Xylene (C8H10)
[/toggle] [toggle title="Specifications"]
Weight Dimensions Power Operating Temp Probe Length
150 lbs (68kg) 30" x 30" x 16" (76.2cm x 76.2cm x 40.64cm) 4A/2A @ 110/220 VAC -32°F - 95°F (0°C - 35°C) 0.5m - 5m
[/toggle] [toggle title="Available Options"]
Option Description
Analog Outputs Adds analog voltage or 4-20mA output channels.
Serial Outputs Adds RS-232, RS-422, or RS-485 output over a wired or wireless platform.
Alarm Outputs Adds switched outputs based on software programmable alarm levels.
Extended temperature ranges Heating and cooling packages available for operation from -20°C to 55°C
Z-Purge Class 1, Division 2 Groups A-D Operation
[/toggle]
Cerex FT5000 Series Multi-gas FTIR Analyzers
Insitu and Extractive CEM and Process Analyzers, Ambient Air Point Analyzers
[one_third]
Insitu Stack and Process FTIR Analyzer
FT5000P
[/one_third] [one_third]
Extractive Stack and Ambient Point Analyzers
FT5000C and FT5000CRM
[/one_third] [one_third_last]
Custom Process Analyzers
FT5000CS
[/one_third_last]
Cerex manufactures stock and fully custom FTIR analyzers within the FT 5000 product series. Cross stack, Probe based, and UVDOAS FTIR hybrid systems allow this line of products to monitor a wide array of compounds that would typically require multiple devices. Minimal maintenance expenses, coupled with automatic calibration cycles and continuous logging and transmission of data make the FT 5000 series perfect for your monitoring application.
Our FTIR analyzers accurately measure common combustion gases, Carbon Dioxide, Carbon Monoxide, Water Vapor, and can easily be configured to monitor over 400 other compounds. All our devices feature custom alarms, complete integration into your existing data network, and an unparalleled ease of use.
[clearline]
Find out which Cerex gas detector is right for your application.
[button color="darkgreen" size="large" caption="for more information" link="http://cerexms.com/contact/" align="center"]Email Cerex[/button]
FT5000P
Insitu Probe CEMs, Multi-gas FTIR Stack Analzyer
[one_half]
The Cerex FT5000P is a fixed Continuous Emissions Monitor for applications requiring a stack or process probe. The FT5000 P analyzer provides real-time multi-gas qualification and quantification of gases commonly found in stack emissions. Multiple detector options and probe lengths are available to meet the exact requirements of the installation.
The Cerex FT 5000P analyzer is based on the widely acclaimed full spectrum Bomem MB3000 interferometer. The MB3000 has compliance with CE and TUV. It comes standard with an internal controller for data logging and integration into your existing sensor network. A number of output options for alarm, data, and process control are available.
[/one_half][one_half_last] [/one_half_last] [button color="darkgreen" size="large" caption="PDF (0.6 MB)" link="http://www.cerexms.com/wp-content/uploads/2013/06/Brochure_Cerex_FT5000P.pdf" align="center"]FT 5000 P Product Brochure[/button] [button color="darkgreen" size="large" caption="for more information" link="http://cerexms.com/contact/" align="center"]Email Cerex[/button] [clearline] [toggle title="Available Compounds"]
Compounds
Acetaldehyde (C2H4O)
Acetic Acid (C2H4O2)
Acetone (CH3COCH3)
Acetylene (C2H2)
Acrolein (C3H4O)
Benzaldehyde (C7H6O)
Butane (C4H10)
n-Butyl (C6H12O2)
Carbon Dioxide (CO2)
Carbon Monoxide (CO)
Chlorine Dioxide (ClO2)
Ethane (C2H6)
Ethanol (C2H6O)
Formaldehyde (CH2O)
Formic Acid (CH2O2)
n-Hexane (C6H14)
Hydrogen Bromide (HBr)
Hydrogen Chloride (HCl)
Hydrogen Fluoride (HF)
Methane (CH4)
Nitric Oxide (NO)
Nitrogen Dioxide (N2O)
Phenol (C6H5OH)
Phosgene (CCl2O)
Water Vapor (H2O)
[/toggle] [toggle title="Specifications"]
Weight Dimensions Power Operating Temp Probe Length
100 lbs (68kg) 30" x 30" x 16" (76.2cm x 76.2cm x 40.64cm) 4A/2A @ 110/220 VAC -32°F - 95°F (0°C - 35°C) 0.5m - 5m
[/toggle] [toggle title="Available Options"]
Option Description
Analog Outputs Adds analog voltage or 4-20mA output channels.
Serial Outputs Adds RS-232, RS-422, or RS-485 output over a wired or wireless platform.
Alarm Outputs Adds switched outputs based on software programmable alarm levels.
Weather Monitoring Adds wind speed and direction logging.
Extended temperature ranges Heating and cooling packages available for operation from -20°C to 55°C
NEMA 4 enclosures Hazardous environment certified enclosure available.
[/toggle]
